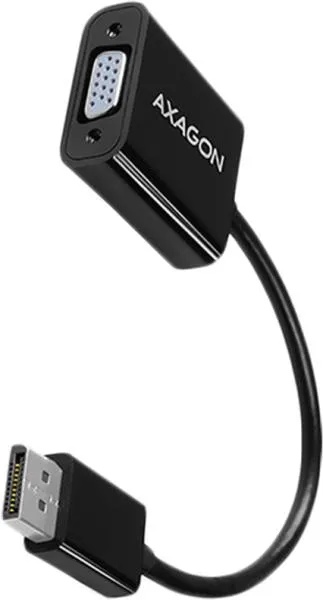

RVD-VGN DP > VGA adapter
Active converter for connecting VGA display to PC with DisplayPort output.

Input
DisplayPort

Output
VGA

PC connection
DP M, permanently connected cable, cable 15 cm

Device support
up to 1920 x 1200

Power supply
on the bus

DisplayPort-> VGA active adapter AXAGON RVD-VGN for connecting an older VGAmonitor/TV/ projector to a computer or other device with Display Portoutput.
Withoutany installation or setup, the hardware converter ensures imagetransfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The reduction is only one-way, i. e. DP to VGA converter, not the opposite way.
Input:
DisplayPort 1.1a digital interface
DisplayPort (M) male connector
Output:
Analog VGA interface
D-Sub 15-pin (F) female connector
Supported resolutions:
max. 1920x1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) WXGA
1360 x 768
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
640 x 480 (4:3) VGA
576i/576p PAL
480i/480p NTSC
Note: The resolution depends on the monitor / TV / projector and graphic adapter parameters.
Other features:
supported modes: mirroring the primary monitor's desktop, extending the primary monitor's desktop, and more,
charging from Displayport input - no external power needed,
Compact dimensions 42 x 37 x 16 mm,
Cable length approx. 16 cm,
Weight 31g,
Operating temperature: 0 ~ 40°C,
Storage temperature: -20 ~ 85°C.
Supported OSs:
All versions of MS Windows, Mac OS X, Linux, Android, Chrome and other operating systems.
This is a purely hardware converter, the conversion is provided by theadapter chip without computer participation, no drivers need to beinstalled, so compatibility is not dependent on your operating system.
Package contains:
DisplayPort > VGA converter,
printed multilingual manual CZ/DE/DK/ENG/ESP/FIN/FR/GR/HR/HU/IT/NL/P L/PT/RO/RU/SK/SWE/BG/CN/TR/ARA,
packed in a cardboard box.

Input

interface
DisplayPort v1.1a

connector
DP male on the cable

cable
15 cm, permanently connected

Output

interface
VGA

connector
D-Sub 15-pin female

Supported features

max. resolution
1920 x 1200 WUXGA

display modes
mirroring / extending the primary monitor area

sound transmission
no

automatic installation
yes

Other features

dimensions
42 x 37 x 16 mm

weight
31 g

Power supply

on the bus
yes (DP bus power)

OS support

MS Windows
all versions

MS Windows Server
all versions

Mac OS
all versions

Linux
all versions
