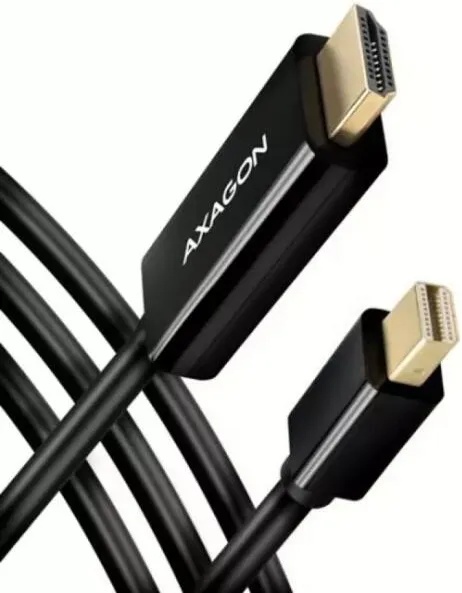

Mini DisplayPort -> HDMI active cable - reduction AXAGON RVDM-HI14C2 for connecting HDMI monitor/TV/projector to a computer with Mini DisplayPort output.

A handy small hardware converter without the need for any installation or adjustment will ensure quality video and audio transmission up to 4K/30Hz resolution .

Transferring video and audio from a computer or laptop will now be a breeze. Compact dimensions ensure easy use even in places with a lack of space. This is the ideal solution - you don't need an HDMI cable and adapter. With this active cable, everything is integrated into one unit.

The cable is only one-way, ie the converter from Mini DisplayPort to HDMI, not the other way around.

Input:

Mini DisplayPort v1.2

Mini DP (M) male connector

Exit:

HDMI v1.4b

HDMI A (M) male connector

Supported resolutions:

Resolution and frequency are determined by the monitor and graphics card used.

max 4096 x 2160 (19:10) @ 30Hz DCI 4K

3840 x 2160 (16: 9) @ 30Hz UHD-1 4K (UHDTV)

3840 x 1600 (21: 9) UW 4K (Ultrawide 1600p)

3840 x 1200 (32:10) 29: 9 4K (Super ultrawide 1200p)

3840 x 1080 (32: 9) 32: 9 4K (Super ultrawide 1080p)

3440 x 1440 (21: 9) UWQHD (Ultrawide 1440p)

2560 x 2048 (5: 4) QSXGA

2560 x 1920 (4: 3)

2560 x 1600 (16:10) WQXGA

2560 x 1440 (16: 9) @ 60Hz WQHD

2560 x 1080 (21: 9) UWFHD (Ultrawide 1080p)

2048 x 1536 (4: 3) QXGA

2048 x 1152 (16: 9) QWXGA

1920 x 1440 (4: 3)

1920 x 1200 (16:10) WUXGA

1920 x 1080 (16: 9) @ 60, 75, 100 and 120Hz Full HD/1080p

1856 x 1392 (4: 3)

1792 x 1344 (4: 3)

1680 x 1050 (16:10) WSXGA +

1600 x 1200 (4: 3) UXGA

1600 x 900 (16: 9) HD +

1536 x 864 (16: 9)

1440 x 900 (16:10) WXGA +

1400 x 1050 (4: 3) SXGA +

1366 x 768 (16: 9) HD

1360 x 768 (16: 9) HD

1280 x 1024 (5: 4) SXGA

1280 x 960 (4: 3) SXGA-

1280 x 800 (16:10) WXGA

1280 x 768 (5: 3) WXGA

1280 x 720 (16: 9) HD/WXGA/720p

1280 x 600

1152 x 864 (4: 3) XGA +

1024 x 768 (4: 3) XGA

800 x 600 (4: 3) SVGA

Other features:

Audio transmission support

DDC (Display Data Channel) support - intelligent setting of resolution, frequency and other parameters according to the psu graphics chip

supported modes: primary monitor desktop mirroring (default setting), primary monitor desktop extension

HPD (Hot-Plug-Detect) support - communication sequence controlling device connection/disconnection during operation

HDCP 1.4 and 2.2 support

support for power saving modes with sleep controlled by psu device (PC) and display device (monitor/TV)

Bus power - no external power is required

gold-plated connectors for perfect contact and oxidation reduction

adapter body dimensions 45 x 21 x 12 mm

cable length incl. connector 1.8 m

weight only 62 g

Supported operating systems:

All versions of MS Windows, Mac OS X, Linux and other operating systems.

It is a purely hardware converter, the conversion is provided only by a cable chip without the participation of a computer, no drivers are installed, so compatibility does not depend on the operating system used.
