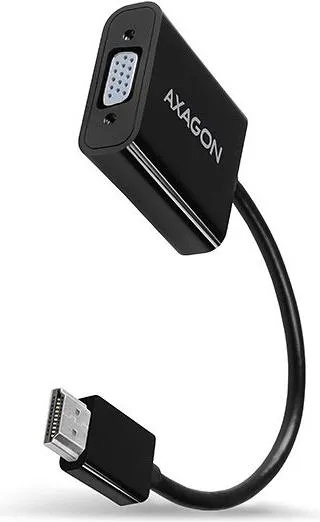

RVH-VGAN HDMI > VGA adapter
Active converter for connecting VGA display to PC with HDMI output. Audio out.

Input
HDMI

Output
VGA, stereo headphone output

PC connection
HDMI M, permanently connected cable, cable 15 cm

Device support
up to 1920 x 1200

Power supply
on the bus, through power adapter

HDMI-> VGA active adapter AXAGON RVH-VGAN with audio output forconnecting an older VGA monitor / TV / projector to a computer or otherdevice with HDMI output. It can also be used with set-top boxes or Xboxand PlayStation consoles.
Withoutany installation or setup, the hardware converter ensures imagetransfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The innovative design of the adapter electronics ensures high-quality clear and sharp images.
The reduction is only one-way, i. e. HDMI to VGA converter, not the opposite way.
Theconverter includes a stereo output (3.5mm jack) for connectingheadphones or active speakers. Audio output can be set to 32 / 44.1 / 48kHz at 16 or 24bit.
Thanksto the built-in microUSB connector for additional charging, the adaptercan also be connected to devices with weaker HDMI output power levelssuch as Raspberry Pi, Apple TV, some Smart TV boxes and more. Noadditional power is needed when connecting to a desktop PC or laptop.
Input:
HDMI v1.4b digital interface
HDMI A (M) male
Output:
Analog VGA interface
D-Sub 15-pin (F) female connector
2-channel analog 16/24 bit output (3.5 mm stereo jack)
Supported resolutions:
max. 1920x1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) WXGA
1360 x 768
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
640 x 480 (4:3) VGA
576i/576p PAL
480i/480p NTSC
Note: The resolution depends on the monitor / TV / projector and graphic adapter parameters.
Other features:
HDCP 1.4 copy protection support for video and audio content,
supported modes: mirroring the primary monitor's desktop, extending the primary monitor's desktop, and more,
charging from HDMI input - no external power needed,
Possibility of additional power via microUSB connector, if the HDMI output power level is lower than standard level,
integrated DAC converter (stereo, 32 / 44.1 / 48 kHz @ 16/24 bit),
Compact dimensions 45 x 43 x 15 mm,
Cable length approx. 17 cm,
Weight 31g,
Operating temperature: 0 ~ 40°C,
Storage temperature: -20 ~ 85°C.
Supported OSs:
All versions of MS Windows, Mac OS X, Linux, Android, Chrome and other operating systems.
This is a purely hardware converter, the conversion is provided by theadapter chip without computer participation, no drivers need to beinstalled, so compatibility is not dependent on your operating system.
Package contains:
HDMI > VGA converter,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.

Input

interface
HDMI v1.4b

connector
HDMI A male on the cable

cable
15 cm, permanently connected

Output

interface
VGA

connector
D-Sub 15-pin female

Audio outputs

analog output
2-channel stereo output for headphones or active speakers

sampling rate
32 / 44.1 / 48 kHz

resolution
16 / 24 bit

connector
3.5 mm stereo jack

Supported features

max. resolution
1920 x 1200 WUXGA

display modes
mirroring / extending the primary monitor area

sound transmission
yes

automatic installation
yes

Other features

dimensions
45 x 43 x 15 mm

weight
31 g

Power supply

on the bus
yes (HDMI bus power)

through power adapter
yes (possibility of additional power supply at low power level from HDMI output)

OS support

MS Windows
all versions

MS Windows Server
all versions

Mac OS
all versions

Linux
all versions

Android
all versions

Chrome
all versions
